Safety Monitoring Battery Safety Test Chamber Leakage Tracking Battery Short Circuit Tester

Name: Safety Monitoring Battery Safety Test Chamber Leakage Tracking Battery Short Circuit Tester
Brand: Neide
Price: 1 USD

Brand Name : Neide

Model Number : ND-562

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiate

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 200 sets per month

Delivery Time : 7-15 work days

Packaging Details : Wooden Case Packing

Brand : Neide

Customized : Welcome

Factory : Yes

Customer : More than 500+

Transportation : By Sea

Reply for probme : Within 24 hours

Contact Now

Safety Monitoring Battery Safety Test Chamber Leakage Tracking Battery Short Circuit Tester

-Prevent Battery Explosion at High Altitude: Smart Touchscreen Simulation Chamber

Our altitude simulation chamber forces batteries to withstand 11.6kPa extreme vacuum (equivalent to 15,240m) for 6+ hours — rigorously testing leakage, swelling, and thermal runaway risks per UN 38.3, IEC 62133, and FAA air transport mandates. Trusted by 120+ EV/Aerospace manufacturers globally.

Parameter	Specification	Competitive Edge
Test Pressure	11.6 kPa (15,240m altitude) ±0.5kPa	► Meets UN 38.3 Sect. 38.3.5 ► 0.1kPa resolution for precision
Pressure Range	0~-100 kPa	Simulates sea level to space vacuum
Compliance Standards	UN 38.3, IEC 62133, UL 1642, GB 38031	Single test for global certifications
Data Output	CSV/PDF reports + USB/Cloud sync	Audit-ready for FAA/EU 2025 audits

⚠️ Compliance-Focused Presentation:

For Battery Products

"All cells must pass catastrophic failure checks: zero explosions/fires, no visible smoke, ≤0.5g electrolyte leakage, and intact vents after 6h at 11.6kPa per UN 38.3 Transport Regulations."

For Electronics

"Devices shall maintain full functionality with no physical damage or operational faults when exposed to 15,240m altitude simulations (IEC 60068-2-13 Class 2 Compliance)."

Test Validation Table

Test Object	Pass Criteria	Failure Indicators	Compliance Standard
Batteries	• No thermal runaway • Vent integrity • Mass loss ≤0.5g	• Smoke/Flame • Leakage >0.5g • Vent activation	UN 38.3, IEC 62133
Electronics	• Continuous operation • No data corruption • Structural integrity	• System crash • Physical cracks • Signal loss	IEC 60068-2-13, DO-160G

Safety Monitoring Battery Safety Test Chamber Leakage Tracking Battery Short Circuit Tester

Hot-Selling Products:

Product Tags:

Safety Monitoring Battery Safety Test Chamber

Leakage Tracking Battery Short Circuit Tester

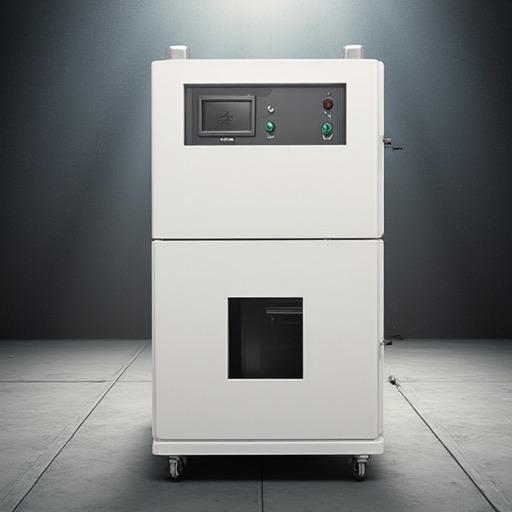

Safety Monitoring Battery Safety Test Chamber Leakage Tracking Battery Short Circuit Tester Images
